A brise-soleil facade is a sun-shading system integrated into or attached to a building’s exterior, using horizontal or vertical slats to block direct solar radiation while still allowing daylight and airflow. A ceramic slat system delivers this by mounting fired ceramic louvre elements onto a ventilated substructure, creating a high-performance solar-shading facade that is durable, non-combustible, and maintenance-free. The sections below explore how the system works, what makes it stand out, and how it fits into modern construction.
How does a ceramic slat system create sun shading on a building?

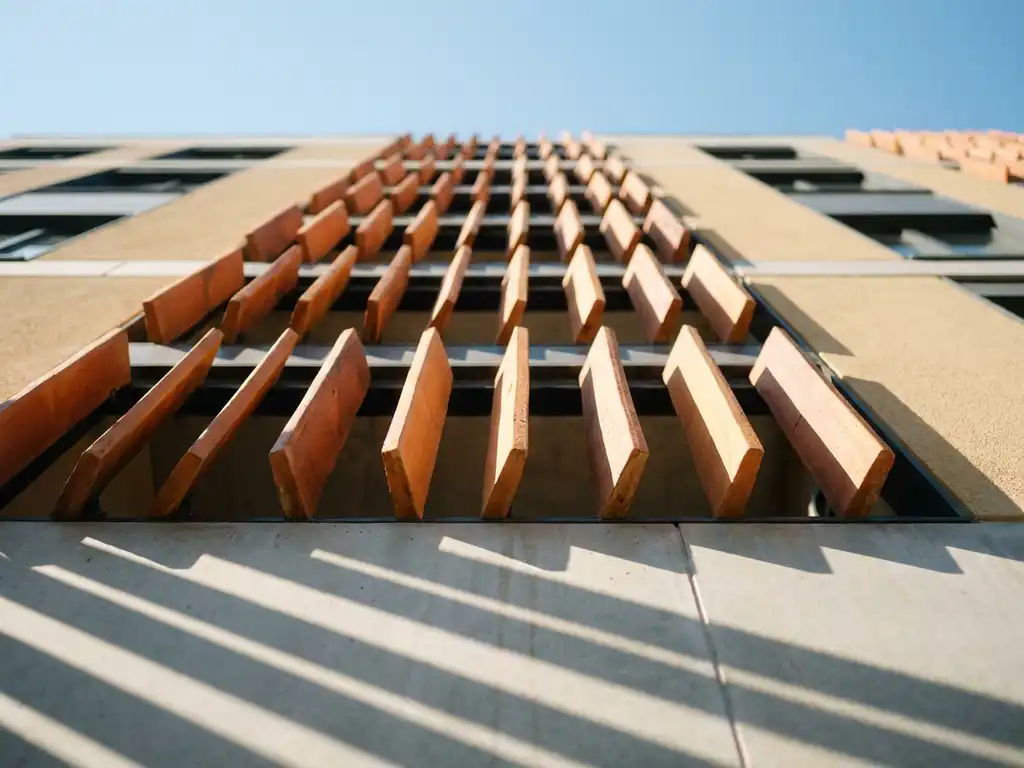

A ceramic slat system creates sun shading by positioning angled ceramic louvre elements across a building’s facade, intercepting direct sunlight before it reaches the glazing or wall behind it. The angle, spacing, and depth of the slats are engineered to block high summer sun while admitting lower winter light, reducing solar heat gain without eliminating natural daylighting.
The system works as part of a ventilated facade construction. Behind the ceramic slats, an air cavity forms naturally between the outer ceramic layer and the building envelope. As the sun heats the outer surface, warm air rises through this cavity and escapes at the top, drawing cooler air in from below. This thermally driven airflow reduces the heat load on the building’s interior without mechanical intervention.
The geometry of the slats is the key design variable. Horizontal elements are most effective at blocking the high midday sun from the south, while vertical elements work better on east and west elevations where the sun travels at a lower angle. Combined systems, sometimes called egg-crate arrangements, offer protection across multiple angles simultaneously. Because ceramic elements can be produced to precise dimensions, the shading geometry can be tailored to a specific latitude, orientation, and glazing ratio for each project.
What are the main benefits of a ceramic brise-soleil over metal or glass?
A ceramic brise-soleil outperforms metal and glass alternatives in several important areas: it is non-combustible, permanently UV-stable, requires virtually no maintenance, and retains its appearance over decades without coating, painting, or surface treatment. These properties make it a strong choice for both performance and long-term value.
Metal louvre systems, typically aluminium or steel, are lightweight and structurally efficient, but they require protective coatings to prevent corrosion and colour fade. Those coatings degrade over time and need periodic inspection and renewal, adding to the total cost of ownership. Glass sun-shading elements offer a sleek aesthetic but are vulnerable to breakage, soiling, and glare, and they can create unintended heat concentration through reflection.
Ceramic sun-shading elements, by contrast, are fired at temperatures above 1,200 degrees Celsius in a sintering process that fuses the material into a dense, virtually impermeable surface. This surface resists moisture ingress, biological growth, air pollution, and UV degradation without any applied finish. The colour is integral to the material, not a coating, so it cannot peel, chip, or fade. Over the full lifecycle of a building, the absence of maintenance cycles represents a significant advantage that architects and developers increasingly factor into their specifications.
Ceramic elements also carry an A1 fire classification, meaning they are non-combustible and contribute no fuel load to a fire. This is a meaningful distinction from many composite metal panel systems, which have faced scrutiny following high-profile facade fire incidents. You can explore completed facade projects to see how ceramic brise-soleil systems have been applied across different building types.
What formats and profiles are available for ceramic sun-shading elements?
Ceramic sun-shading elements are available in a wide range of formats, from compact louvre tiles to large-format slats, and can be produced with flat, ribbed, or profiled surfaces depending on the shading geometry required. Standard formats typically range from 150 x 300 mm up to 400 x 1,600 mm, with production tolerances of within one millimetre.
The profile of the element, meaning its cross-sectional shape, determines both its shading performance and its visual character. Flat slats deliver a clean, contemporary look and are straightforward to calculate for shading angles. Deeper profiled elements with a curved or angled cross-section can deflect more sunlight at shallower angles, extending the effective shading period through the day. Ribbed rear profiles are common in ventilated facade systems because they interlock with the aluminium retaining profiles of the substructure, securing the element mechanically without adhesive.
Surface finishes add another layer of design flexibility. Smooth, matt, and textured surfaces each interact differently with light, affecting both the visual appearance of the facade and the degree to which the ceramic reflects or absorbs solar radiation. Darker surfaces absorb more heat at the slat surface itself, which can be beneficial for driving the ventilation chimney effect behind the facade. Lighter surfaces reflect more radiation and may be preferred in very hot climates. You can review the full range of available surfaces and formats to assess which combination suits a specific project.
Is a ceramic brise-soleil suitable for timber-frame construction?
Yes, a ceramic brise-soleil is particularly well suited to timber-frame construction. The low surface weight of ceramic facade systems, typically around 40 kilograms per square metre, reduces the structural load on timber frames compared to heavier cladding systems, and the A1 non-combustible classification of ceramic elements provides a critical layer of fire protection for a building type that is inherently combustible.
Timber construction is growing rapidly in 2026 as architects and developers respond to embodied carbon targets and the expanding availability of engineered timber products such as cross-laminated timber and glulam. However, timber buildings face specific regulatory requirements around external fire spread, and facade specification is one of the most scrutinised areas. A ceramic louvre facade satisfies those requirements directly because the material itself contains no combustible components and does not contribute to flame spread across the exterior.
The weight advantage is equally practical. Lighter facade elements mean the substructure, brackets, and fixings can be sized down, which reduces material use and simplifies installation. On multi-storey timber buildings where cumulative facade loads are significant, this reduction in dead weight has a measurable effect on the structural design of the frame. The ventilated cavity behind the ceramic slats also helps manage moisture vapour that can migrate through a timber structure, supporting the long-term hygrothermal performance of the wall assembly.
How is a ceramic slat facade installed and maintained?
A ceramic slat facade is installed using a dry-fix system: vertical aluminium retaining profiles are fixed to the building structure, and the ceramic elements clip or interlock into those profiles without adhesive or wet trades. Installation is straightforward and fast, often described as mount-and-done, and the individual elements can be removed and replaced independently if needed.
The installation sequence follows the logic of a standard ventilated facade. A thermal insulation layer is fixed to the structural wall first, followed by a wind-tight membrane where required. The aluminium substructure is then mounted through the insulation to the wall using thermally broken brackets that minimise heat bridging. Once the substructure is in place, the ceramic elements are slotted into the retaining profiles from the front, with no need for access from behind the cladding layer.
Maintenance requirements are minimal. The dense, sintered surface of ceramic louvre elements resists dirt adhesion, and rainfall is generally sufficient to keep the surface clean under normal conditions. Many ceramic facade systems include integrated graffiti protection as part of the surface specification, which further simplifies upkeep in urban environments. There are no coatings to inspect, no sealants to renew, and no corrosion risk, so the inspection regime for a ceramic brise-soleil is considerably lighter than for painted metal or glass alternatives. Download technical documentation to review installation details and maintenance guidance in full.
How TONALITY® delivers a high-performance ceramic brise-soleil
TONALITY® manufactures ceramic facade elements from the highest-quality clay deposits in the Westerwald region of Germany, producing slats and louvre tiles that are precision-fired at over 1,200 degrees Celsius for a consistently dense, durable surface. For architects and developers specifying a sun-shading facade, TONALITY® offers a system that combines genuine solar-shading performance with the long-term lifecycle benefits that ceramic uniquely provides.
The key advantages TONALITY® brings to a ceramic brise-soleil specification include:
- Precision manufacturing to within one millimetre, enabling accurate shading geometry across large facade areas
- Wide format range from 150 x 300 mm to 400 x 1,600 mm, covering both fine-grained louvre patterns and bold large-format slat designs
- A1 non-combustible classification, making the system appropriate for timber-frame, high-rise, and other fire-sensitive building types
- Integrated graffiti protection and permanent UV resistance, eliminating the maintenance cycles associated with coated metal alternatives
- Low surface weight of approximately 40 kg/m², reducing substructure requirements and installation complexity
- 100% recyclability and component-level deconstruction, supporting circular economy goals at end of building life
